STAR-II UFO High Bay

  1. OVERVIEW

1.jpg  Three beam angles can be achieved,60°/90°/120°

1.jpg  Weight is only 1/3 of common LED high bay, save in delivery cost.

1.jpg  5-Year-Standard Warranty,7-Year-Extended Warranty.

1.jpg  IP65 vandal resistant(IK10)

1.jpg  Brand led chips and power supply equiped,high Efficacy reach to 180lm/W.

1.jpg  Up to 10KV Surge Protection(L-GND)

1.jpg  Optional 0-10V/Dali Dimmable Built-in.

1.jpg  Flicker free





  1. SPECIFICATION
ModelS-II-100S-II-150S-II-200

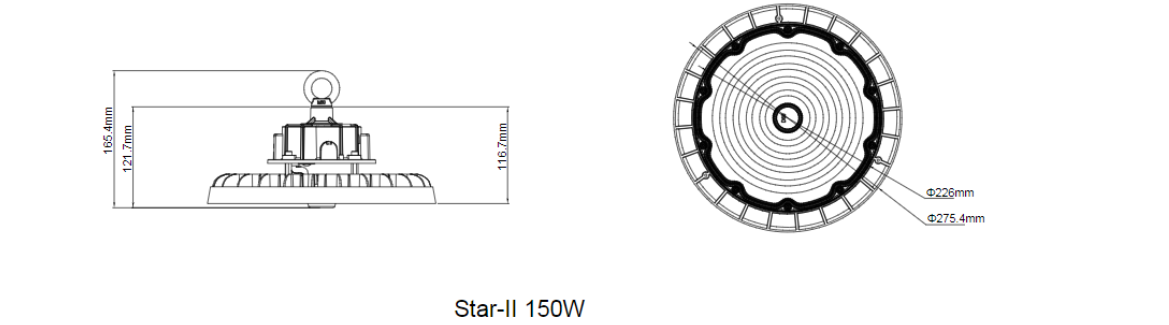

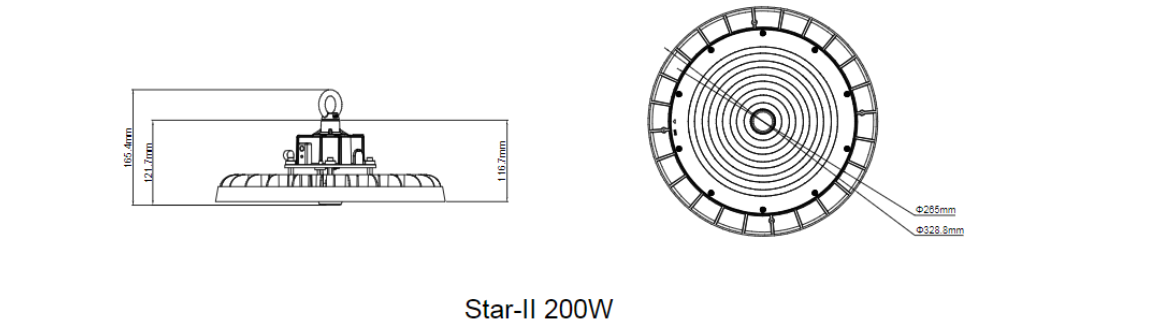

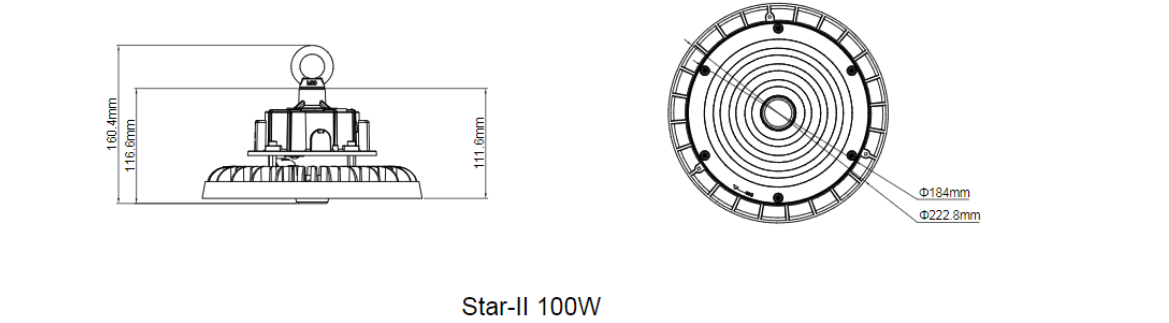

Product Sizeφ222.8*160.4MMφ275.4*165.4MMφ328.8*165.4MM
Power(W)100W150W200W
Luminous Flux(LM)14000LM21000LM28000LM
Efficacy(LM/W)140LM/W140LM/W140LM/W
Power Supply BrandLifudLifudLifud
LED BrandBMTCBMTCBMTC
Input VoltageAC176-305VAC176-305VAC176-305V

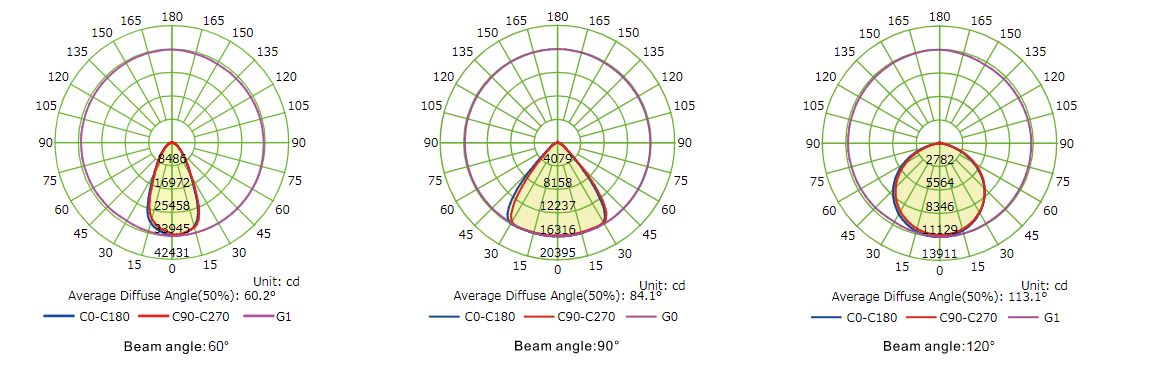

Beam Angle60°/90°/120°60°/90°/120°60°/90°/120°
Colour Index(Ra)>80>80>80
DimmableOptional(0-10V)or(Dali dimming)Optional(0-10V)or(Dali dimming)Optional(0-10V)or(Dali dimming)
Colour Temperature(K)4000K/5000K/5700K4000K/5000K/5700K4000K/5000K/5700K
Lifetime(Hr)50,000 Hours50,000 Hours50,000 Hours
CertificateTUV-CE,ROHS,CB,ENECTUV-CE,ROHS,CB,ENECTUV-CE,ROHS,CB,ENEC
Warranty5 Years5 Years5 Years
Operating Temperature-25℃~50℃-25℃~50℃-25℃~50℃

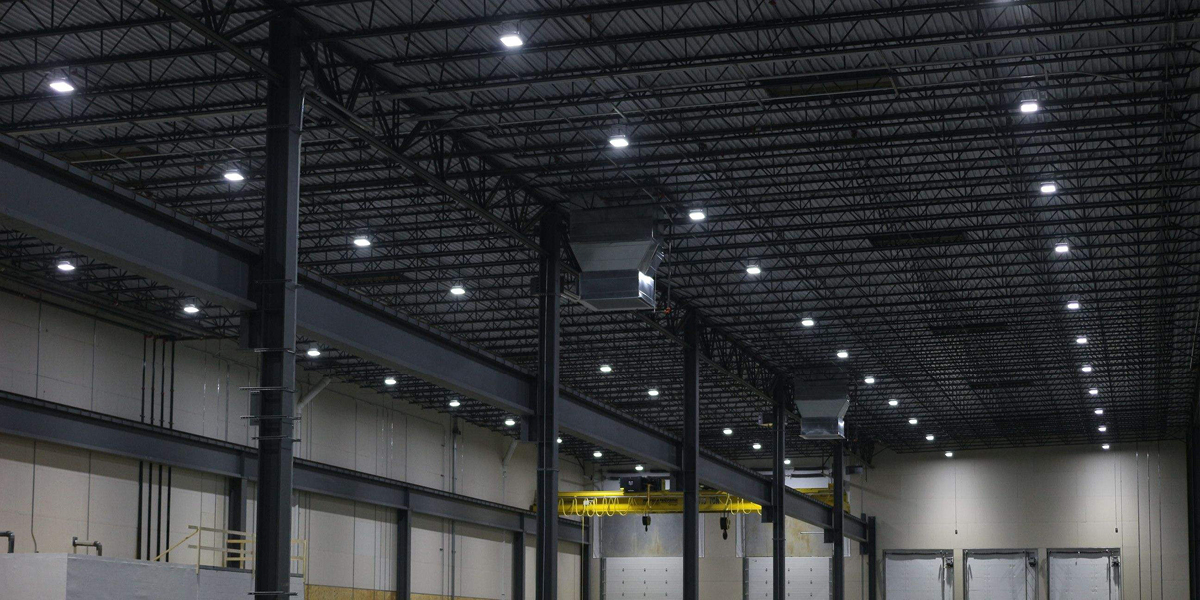

  1. APPLICATION


  1. FEEDBACK
